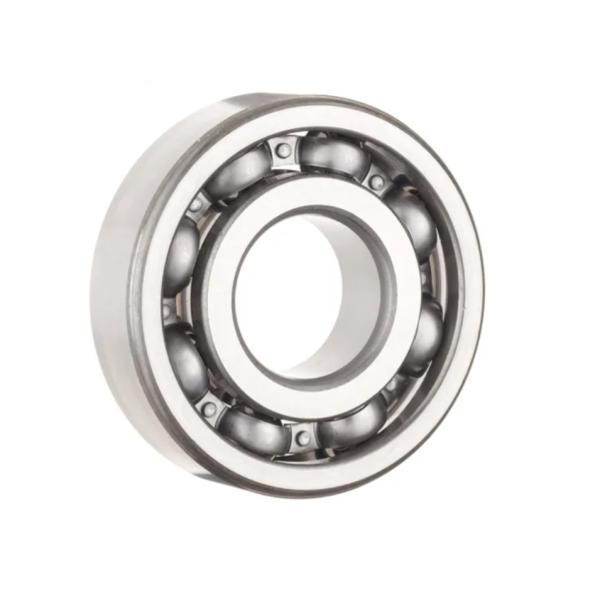

High Rotational Speeds Open Type Deep Groove Ball Bearings
Product Description:
Deep groove ball bearings are the most widely used bearing type and are particularly versatile.
They have low friction and are optimized for low noise and low vibration which enables high rotational speeds.
They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types.
Product Function:
Compared with other machinery, bearing is a small part, but it plays a pivotal role. It is mainly used to fix and reduce the load friction coefficient in the process of mechanical transmission. When other parts are moving relative to each other on the shaft, bearings can be used to reduce the coefficient of friction in the process of power transmission and keep the center of the shaft fixed.So as to increase the service life of the equipment
Product Application:
These bearing are useful for bicycles, motorcycle,Skateboards, Longboards, Inline Skates, Electric Skateboards,toys,mower.
Product Parameter:
Bearing
No | Dimensions ( mm ) | Load Capacity ( kN ) | Rotation Speed ( RPM ) | Weight |
| d | D | B | RSMIN | D2Max | fMax | Cr | Co | Grease | Oil | kg |
| 6000 | 10 | 26 | 8 | 0.3 | 29.2 | 0.7 | 4.60 | 2.00 | 26000 | 38000 | 0.02 |
| 6200 | 10 | 30 | 9 | 0.6 | 34.7 | 1.12 | 5.10 | 2.40 | 22000 | 32000 | 0.03 |
| 6300 | 10 | 35 | 11 | 0.6 | 39.7 | 1.12 | 8.10 | 3.50 | 20000 | 29000 | 0.05 |
| 6001 | 12 | 28 | 8 | 0.3 | 30.8 | 0.85 | 5.10 | 2.40 | 23000 | 33000 | 0.02 |
| 6201 | 12 | 32 | 10 | 0.6 | 36.7 | 1.12 | 6.80 | 3.00 | 21000 | 30000 | 0.04 |
| 6301 | 12 | 37 | 12 | 1.0 | 41.3 | 1.12 | 9.70 | 4.20 | 19000 | 27000 | 0.06 |
| 6002 | 15 | 32 | 9 | 0.3 | 36.7 | 1.12 | 5.60 | 2.80 | 20000 | 30000 | 0.03 |
| 6202 | 15 | 35 | 11 | 0.6 | 39.7 | 1.12 | 7.60 | 3.70 | 19000 | 28000 | 0.05 |
| 6302 | 15 | 42 | 13 | 1.0 | 46.3 | 1.12 | 11.40 | 5.40 | 16000 | 24000 | 0.08 |
| 6003 | 17 | 35 | 10 | 0.3 | 39.7 | 1.12 | 6.00 | 3.30 | 19000 | 28000 | 0.04 |
| 6203 | 17 | 40 | 12 | 0.6 | 44.6 | 1.12 | 9.60 | 4.80 | 17000 | 25000 | 0.07 |
| 6303 | 17 | 47 | 14 | 1.0 | 52.7 | 1.12 | 13.60 | 6.60 | 15000 | 22000 | 0.12 |
| 6004 | 20 | 42 | 12 | 0.3 | 46.3 | 1.12 | 9.40 | 5.00 | 17000 | 25000 | 0.07 |
| 6204 | 20 | 47 | 14 | 0.6 | 52.7 | 1.12 | 12.80 | 6.60 | 15000 | 22000 | 0.1 |
| 6304 | 20 | 52 | 15 | 1.0 | 57.9 | 1.12 | 15.90 | 7.80 | 13000 | 20000 | 0.14 |
| 6005 | 25 | 47 | 12 | 0.6 | 52.7 | 1.12 | 10.10 | 5.80 | 14000 | 21000 | 0.08 |
| 6205 | 25 | 52 | 15 | 1.0 | 57.9 | 1.12 | 14.00 | 7.90 | 14000 | 20000 | 0.13 |
| 6305 | 25 | 62 | 17 | 1.1 | 67.7 | 1.7 | 20.60 | 11.20 | 12000 | 17000 | 0.22 |
| 6405 | 25 | 80 | 21 | 1.5 | 86.6 | 1.7 | 36.10 | 18.80 | 10000 | 15000 | 0.53 |
| 6006 | 30 | 55 | 13 | 1.0 | 60.7 | 1.12 | 13.20 | 8.30 | 12000 | 18000 | 0.11 |
| 6206 | 30 | 62 | 16 | 1.0 | 67.7 | 1.7 | 19.50 | 11.30 | 11000 | 16000 | 0.2 |
| 6306 | 30 | 72 | 19 | 1.1 | 78.6 | 1.7 | 26.60 | 15.00 | 10000 | 15000 | 0.35 |
| 6406 | 30 | 90 | 23 | 1.5 | 96.5 | 2.46 | 47.30 | 24.50 | 9300 | 13000 | 0.74 |
| 6007 | 35 | 62 | 14 | 1.0 | 67.7 | 1.7 | 15.90 | 10.30 | 11000 | 16000 | 0.15 |
| 6207 | 35 | 72 | 17 | 1.1 | 78.6 | 1.7 | 25.70 | 15.30 | 10000 | 14000 | 0.29 |
| 6307 | 35 | 80 | 21 | 1.5 | 86.6 | 1.7 | 33.40 | 19.20 | 9300 | 13000 | 0.45 |
| 6407 | 35 | 100 | 25 | 1.5 | -- | -- | 55.50 | 29.40 | 8500 | 12000 | 0.95 |
| 6008 | 40 | 68 | 15 | 1 | 74.6 | 1.7 | 16.80 | 11.50 | 10000 | 15000 | 0.19 |
| 6208 | 40 | 80 | 18 | 1.1 | 86.6 | 1.7 | 29.50 | 18.10 | 8800 | 13000 | 0.37 |
| 6308 | 40 | 90 | 23 | 1.5 | 96.5 | 2.46 | 40.70 | 24.00 | 8500 | 12000 | 0.64 |
| 6408 | 40 | 110 | 27 | 2 | 116.6 | 2.46 | 63.70 | 34.60 | 7800 | 11000 | 1.25 |
Picture Display:
Q1: Are you a factory
A1: Of course.
Q2.Do you have certificate?
A2:Our company has achieved ISO9001, CE certification.
Q3: How about the delivery time?
A3: Our production period is normally 10-20 days after receiving advance payment. For some standard model, we can delivery
immediately if we have goods in stock.
Q4: Can we print the LOGO on products?
A4: Yes, OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T or L/C, if you want other payment terms, please contact us.
