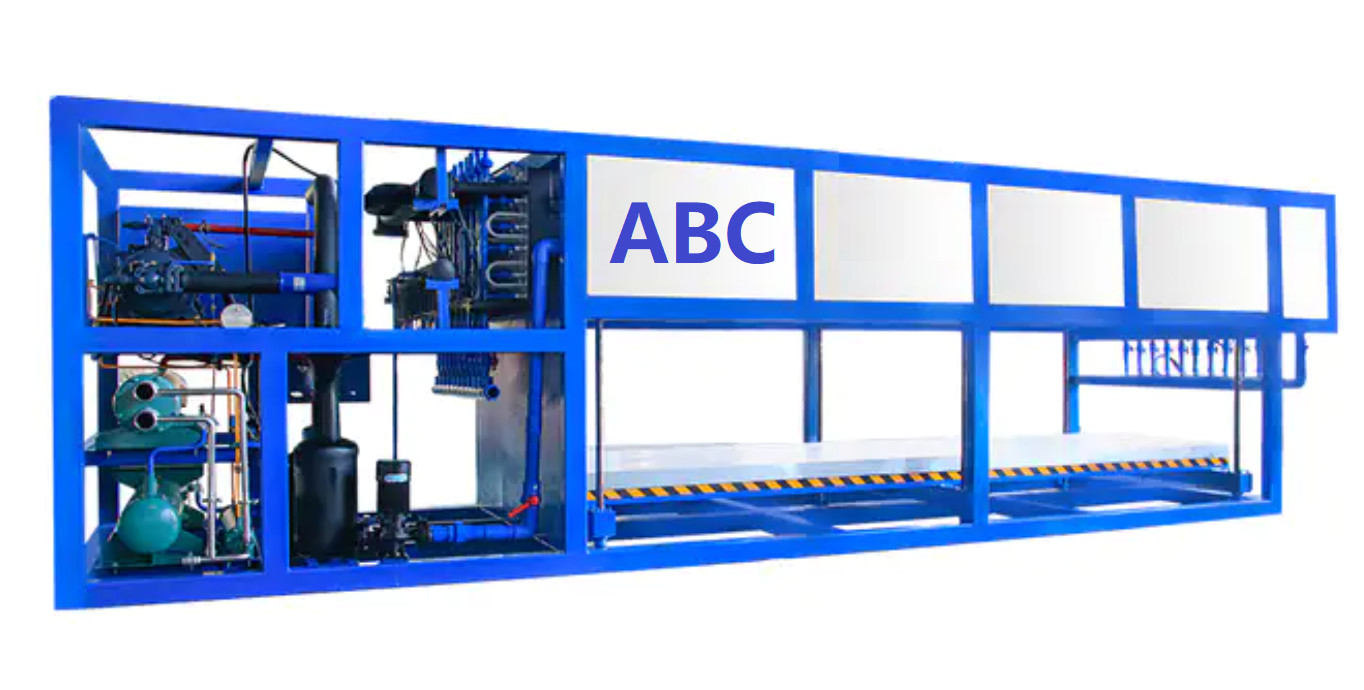

380 V/3P/50hz 10 Tons Block Ice Plant Making Machine Food Preservation Concrete Cooling
Main Features
● Daily Capacity: 10 tons 24 hrs
● Machine power supply: 3 phase industrial power supply
● PLC controlling system, very easy to use.
● Automatic operation to save your labor work
● Compact design to save your area need.
● The direct cooling block ice machine is easy to operate, easy to transport, and low in cost. Because it is direct refrigeration, ice is hygienic, clean and edible. Compared to other types of products, there is no need to use brine, no ice contamination problems.
● The direct cooling block ice machine uses fresh water to make ice, and the water is directly frozen into ice. You don't need to add other items, only water and electricity are needed to make ice.
Product Details
1. The direct cooling ice block machine ice mold material is aluminum plate, the main machine is made of stainless steel, which has the characteristics of anti-rust and anti-corrosion. Equipped with an electric lift to speed up the collection of ice.
2. The machine is using Siemens PLC and touch screen controller for system control. After very short learning, operator may get to handle the whole machine.
3. Germany Bitzer is a world famous brand, its after-sales service centers are all over the world. And the quality is on the top of the area. We have more than 15 years of experience using Bitzer compressor in our ice mchines.
Block ice Machine Application
Ice factory of the ports and docks, refresh for aquatic products, cooling, distance transportation,fishery, food preservation, special areas of cooling, ice sculpture.
Product Parameter
| 10000kg Direct cooling ice block machine parameters |
| Item | Unit | Parameters |
| Bitzer Compressor | Spec | 6HE-28 |
| Refrigerating capacity(kw) | 61.8 |
| Power(kw) | 20.5 |
| Condenser | Heat exchange capacity(kw) | 95.2 |
| Condensing Temperature | Temperature(℃) | 38 |
| Evaporating Temperatue | Temperature(℃) | -10 |
| Ambient Temperature | Temperature(℃) | 32 |
| Water Supply Temperature | Temperature(℃) | 20 |
| Refrigerant | | Ammonia R717 |
| Power Supply | V/P/HZ | 380/3/50 |
| Lifting Motor | Power(kw) | 5.5 |
| Cooling Tower | Power(kw) | 0.55 |
| Circulating Pump | Power(kw) | 0.75 |
| Cooling Pump | Power(kw) | 2.2 |
| 30kg Block Ice Size | L*W*H(mm) | 250*150*880 |
| 40kg Block Ice Size | L*W*H(mm) | 340*150*880 |
| 50kg Block Ice Size | L*W*H(mm) | 420*150*880 |
| Water Cooling Machine Size | L*W*H(mm) | 11000*2250*2500 |
Q: What are your advantages compared with your competitors?
A:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Q: Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.
Q: What are your Price Terms?
A: Price can be based on FOB, CFR, or CIF, etc.
Q: What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Q: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Q: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Q: Can I print my Logo on the machine?
A: Yes, sure.
Q: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
Q: What are your modes of transportation?
A: Courier service, Air transport, Sea Transport.
Q: Which ports do you usually ship at?
A: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
